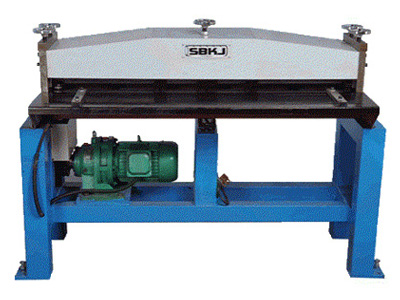

Duct Beader

Grooving Machine

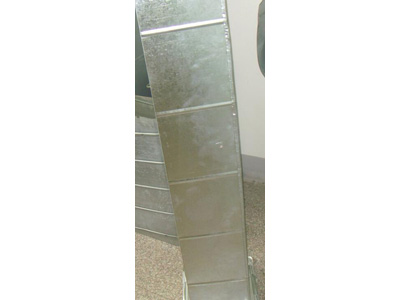

The duct beader forms bead profiles on rectangular tubes to reinforce the structure. It can also form multiple beads on sheet metal. It can form multiple vertical beads simultaneously on thin sheet metal to reinforce its structure.

Parameter:

Type	SBYJ 1.2×1250-5	SBYJ 1.2×2000-7
Thickness	1.2mm	1.2mm
Width	1250mm	2000mm
Power	1.5kw	2.2kw
Weight	390kg	480kg
Dimension	1500×750×1130mm	2550×720×1130mm
