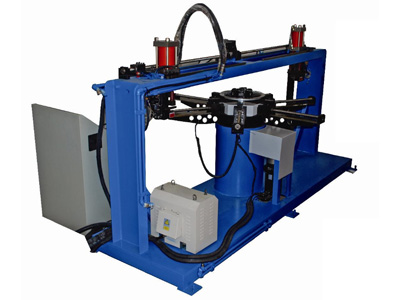

Flange Drilling Machine

Round Flange Punching Machine
  • Flange Drilling Machine
  • Flange Drilling Machine

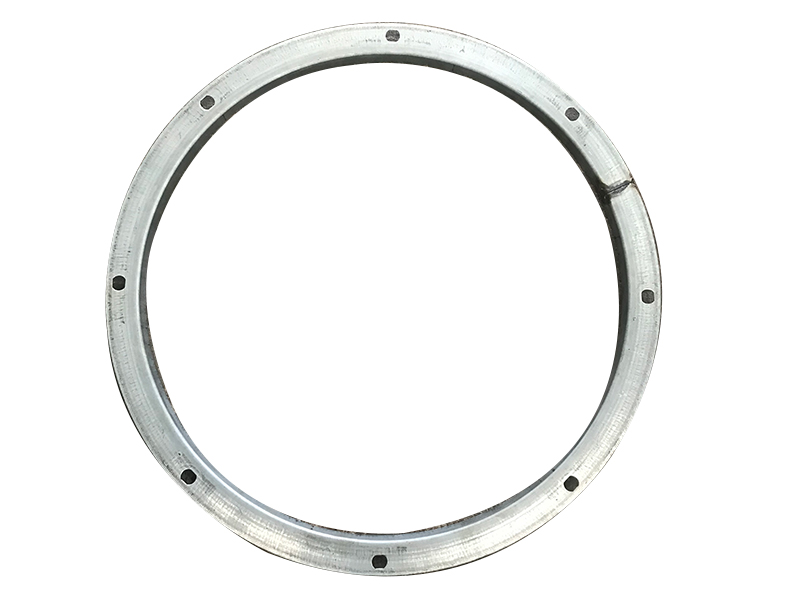

The flange drilling machine creates holes for screws to hold each duct component together. The maximum workable material thickness is 5mm, the maximum manufacturable diameter is 1800m. The hole dimension and pattern can be adjusted according to your needs.

Parameter:
Diameter range 250-1800mm
Angle steel size(Width*Height*Thickness) Carbon steel: 20x30x2-4mm, 30x30x2-4mm, 30x40x2-4mm, 30x50x2-4mm
Stainless steel: 20x30x2mm, 30x30x2mm, 30x40x2mm, 30x50x2mm
Weight 1500kg
Dimension 3200x1100x2000mm
Power 7.5kW
Voltage 380V/3-phase/50Hz
