Transverse Duct Connector Flange Forming Machine

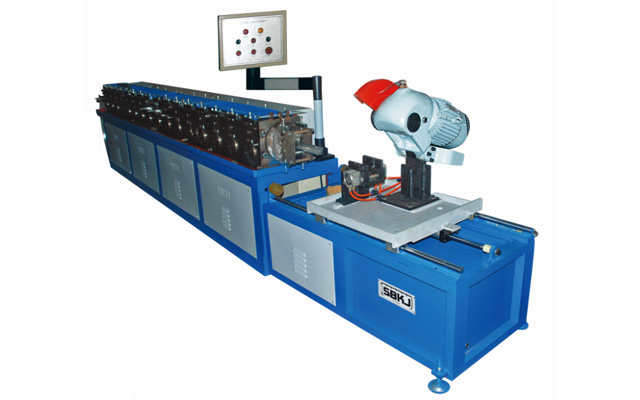

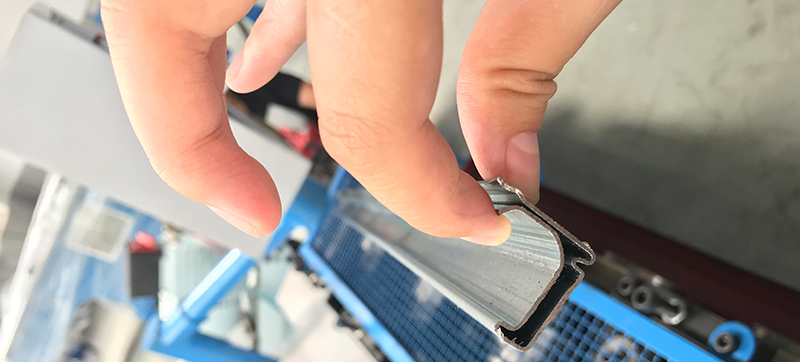

The transverse duct connector flange forming machine is used to make transverse duct connections. It consists of a material feeding station, TDC clip roll, and cutting compartment. The cutting section is fully automated, thus achieving automated production, the production speed is 3-5m/min. These are suitable for making ventilation duct with larger cross section area. If you have certain sealing requirement for your duct, we can add sealant into the manufacturing process.

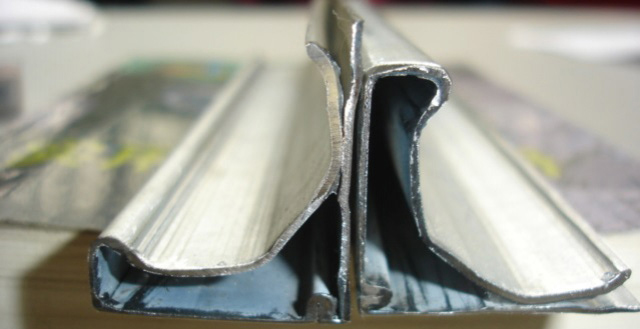

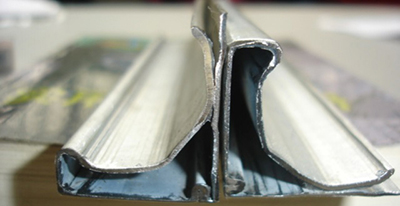

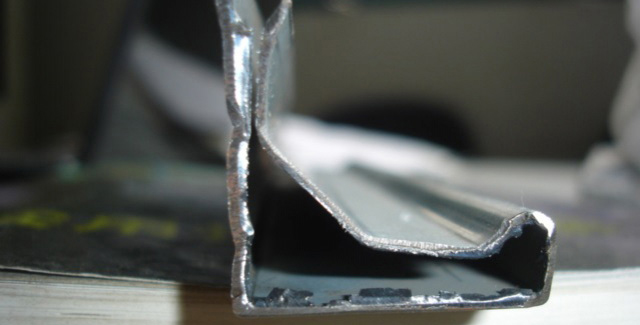

Type	Shape of TDC	Srip Width	Thickness	Motor	Weight	Dimension
SBTDC-20A		89mm	0.8mm	3Kw	2000kg	2800×600×1150mm
SBTDC-25A		99mm	0.8mm	3Kw	2000 kg	2800×600×1150mm
SBTDC-30A		121mm	1.0mm	3 Kw	2200 kg	3800×600×1150mm
SBTDC-35A		131mm	1.0mm	3 Kw	3000 kg	3800×600×1200mm
SBTDC-40A		146mm	1.2mm	4 Kw	3000 kg	3800×600×1200mm
SBTDC-20B		86mm	0.8mm	3 Kw	2000 kg	3200×600×1150mm
SBTDC-25B		96mm	0.8mm	3 Kw	2000 kg	3200×600×1150mm
SBTDC-30B		118mm	1.0mm	3 Kw	2200 kg	4500×840×1450mm
SBTDC-35B		128mm	1.0mm	4 Kw	3000 kg	4500×840×1450mm

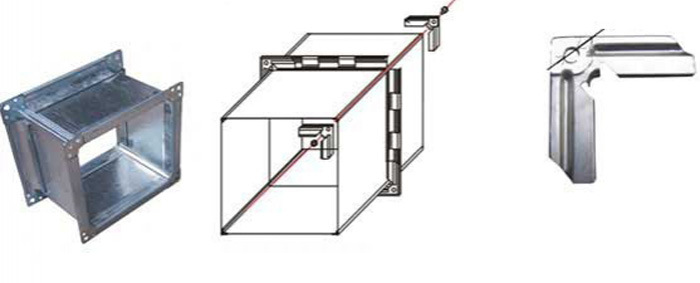

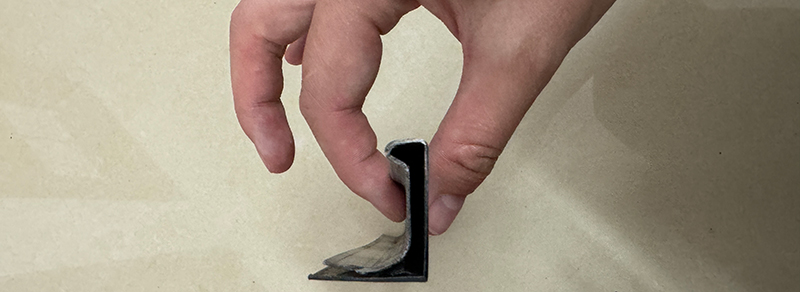

We can make corner bracket and hook bracket for flanges

type	Name	strip Width	Thickness	Size	Shape of corner bracket and hook bracket
T-20DC	Corner bracket	140mm	2.5mm	a=95mm
T-300C	Corner bracket	150mm	3mm	a=105mm
T-40DC	Corner bracket	180mm	3.5mm	a=123mm
T-25DC	Corner bracket	110mm	3mm	a=105mm
T-35DC	Corner bracket	150mm	3mm	a=106mm
DC-10	hook bracket	35mm	5mm
