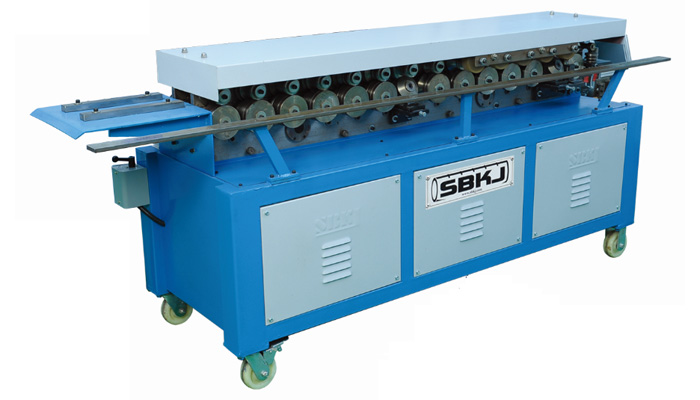

Transverse Duct Flange Forming Machine

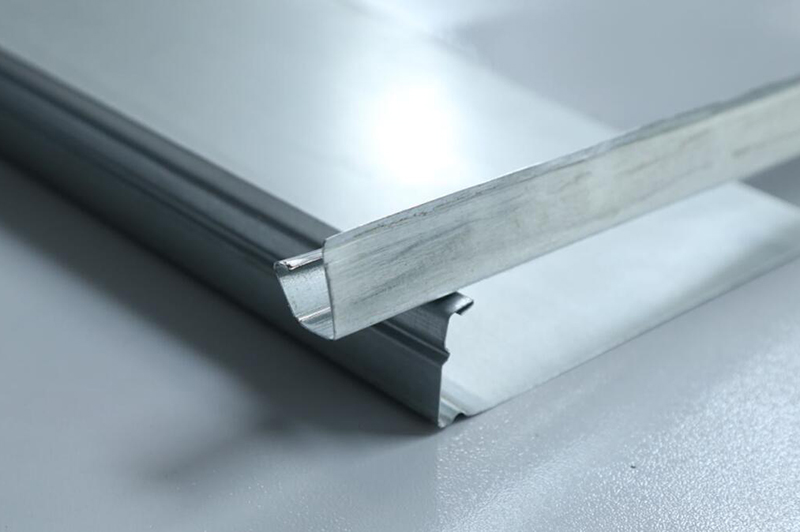

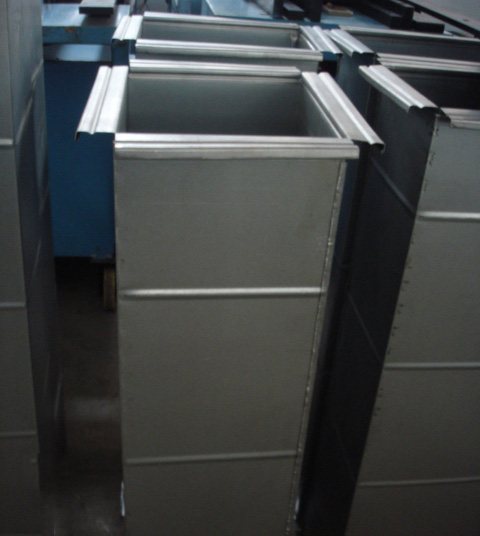

The transverse duct flange forming machine presses galvanized sheet metal to form ducts and flanges in one piece, thus the final product is a transverse duct flange. Our machines have higher productivity, produce less material waste, small duct leakage, and low energy consumption thus saving production cost. The maximum workable material thickness is 1.5mm.

Type	SBTDF-12	SBTDF-15
Thickness	Galvanized Steel Sheet 0.5-1.2mm	Galvanized Steel Sheet 0.8-1.5mm
	Stainless Steel 0.5-0.8mm	Stainless Steel 0.8-1.2mm

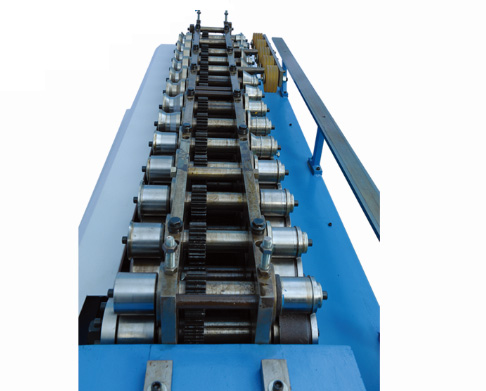

Roller SHape
Power	2.2Kw	3Kw

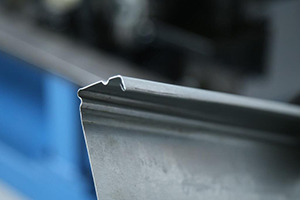

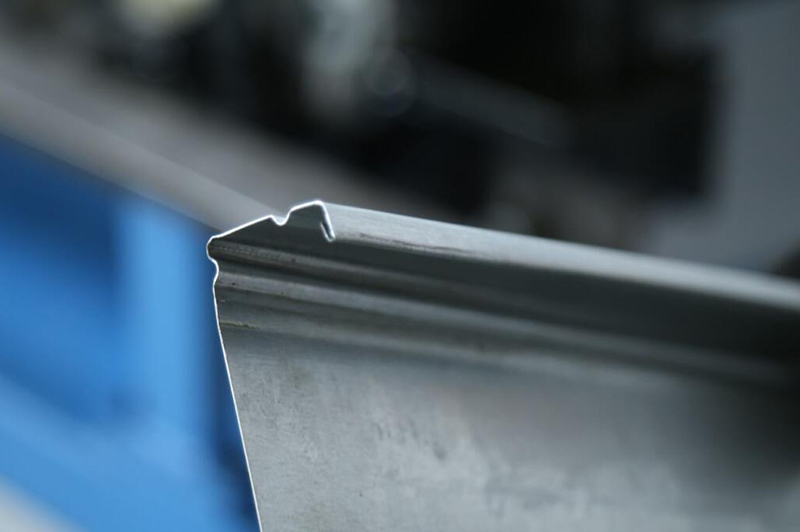

Height Of Flange	33±0.5mm	33±0.5mm
Weight	760Kg	910Kg
Dimension	2540×720×1000mm	2750×750×1000mm
