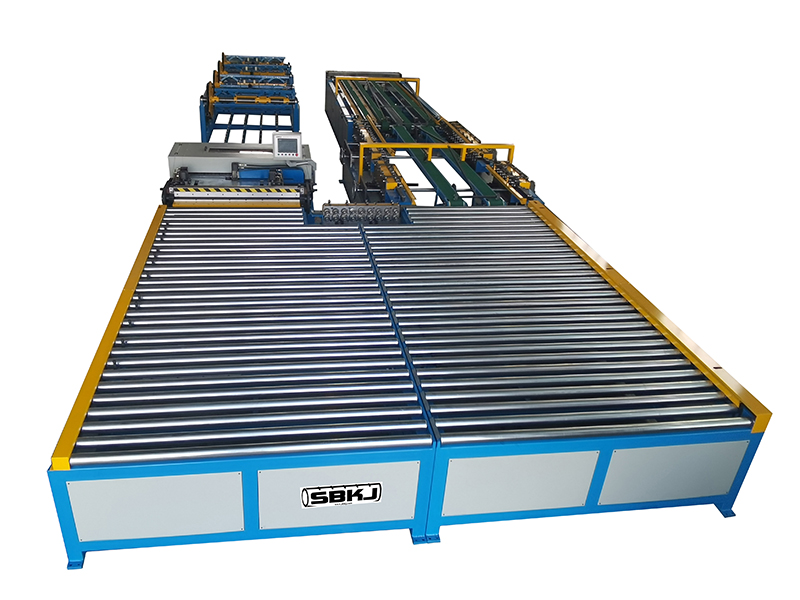

Duct LineⅤ,Automatic Rectangular Ductwork Manufacturing System

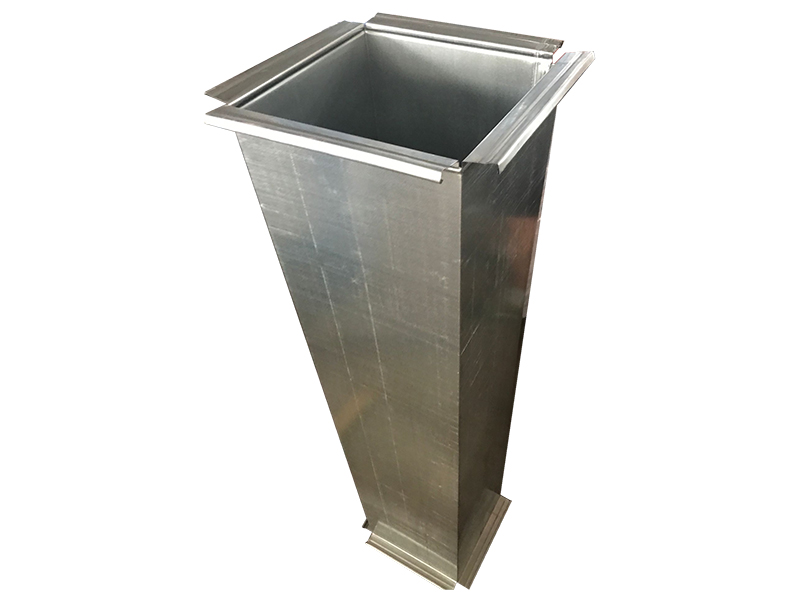

The duct line Ⅴ adds a bending machine that is not found on duct line IV. The end product is almost a fully rectangular duct that can be used immediately after the edges have been sealed with a seam closer and corners have been inserted.

The production line is fully automated, which saves labor and increases both the precision and productivity. The duct line V features a prefill angle flange former or a Transverse Duct Flange Forming Machine, both of which are easily interchangeable and easy to operate.

Duct line Ⅴ consists of the material compartment, flange former, duct beader, sheet shearing machine, and angle pressing machine.

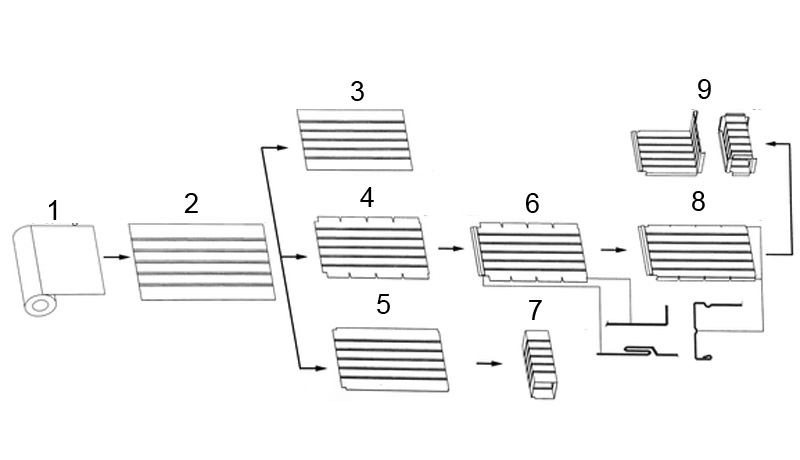

• Uncoiling
• Leveling&Bending Grooving
• Customized Cut-off
• Notched "V" and "口" and Shear for C&S or TDF Flange
• Notched "口" and Shear for C&S or TDF Flange
• Forming Pittsburgh lock

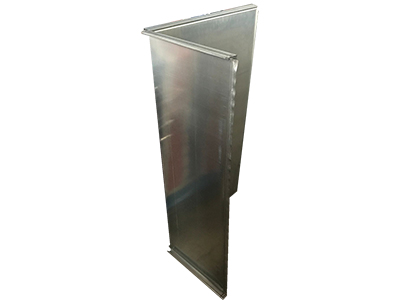

• Folding to "口" and "L" Type
• Forming the Angle & TDF Fangle
• Can be Forming for "L" and "口" Type

• Computer controlled electronics.
• Bending machine powered by servo to ensure bending precision and stability.
• Maximum feeding speed 16m/min，length tolerence±0.5mm.
