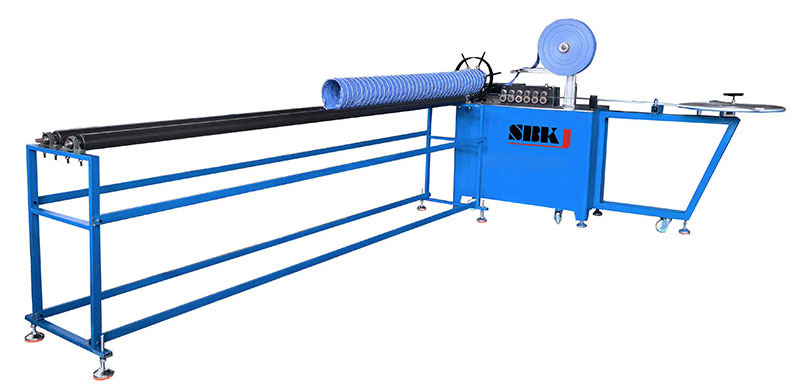

Automatic Flexible Duct Forming Machine (U-Lock Air Duct Canvas)

Automatic Flexible Duct Forming Machine (U-Lock Air Duct Canvas)
  • Automatic Flexible Duct Forming Machine (U-Lock Air Duct Canvas)
  • Automatic Flexible Duct Forming Machine (U-Lock Air Duct Canvas)
  • Automatic Flexible Duct Forming Machine (U-Lock Air Duct Canvas)

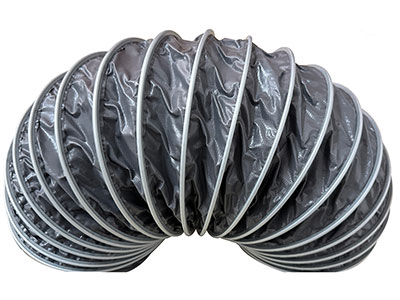

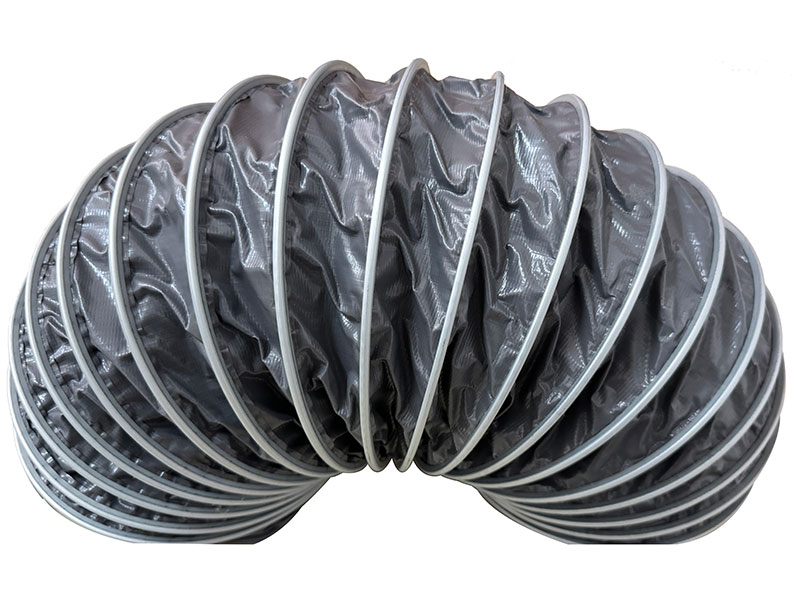

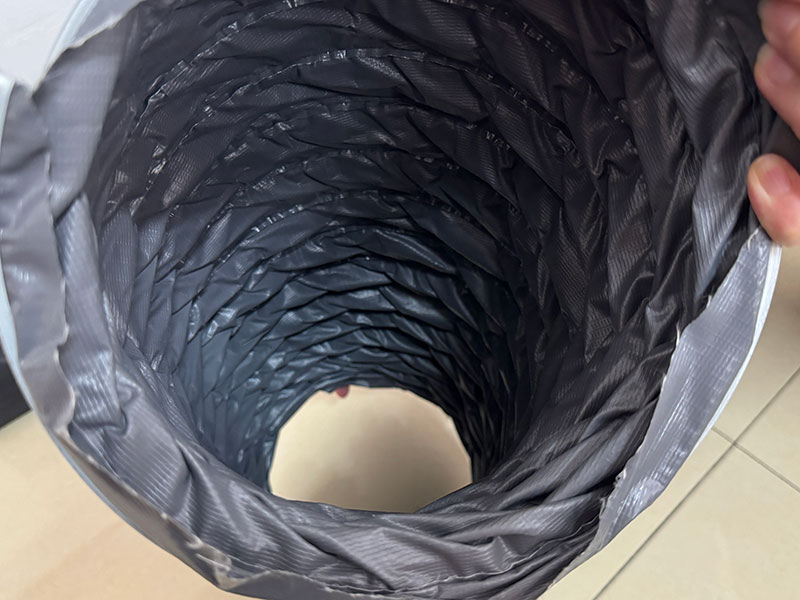

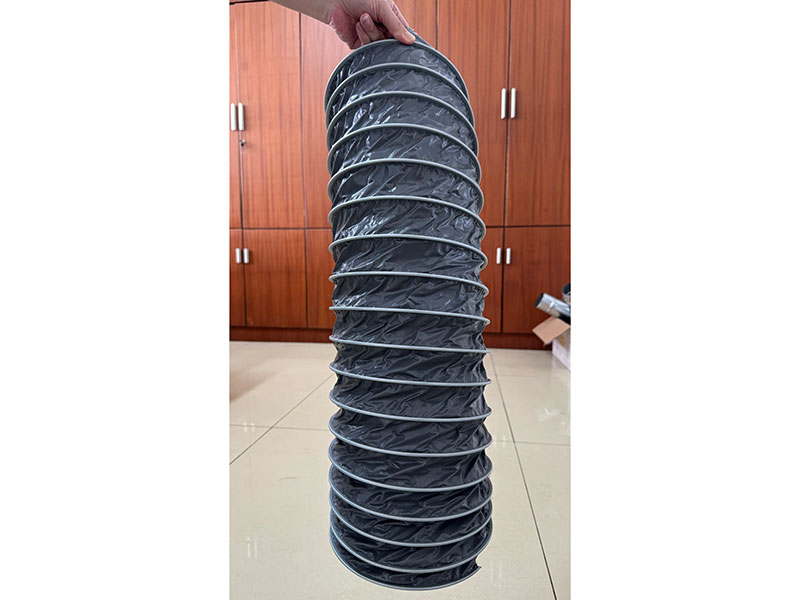

  • The U-lock air duct canvas machine incorporates advanced design to efficiently produce durable and easy-to-install ducts. Ideal for creating airtight connections in ventilation systems, this ductwork equipment enhances the structural integrity and usability of produced ducts.

    Features
    • Advanced Manufacturing Technology: Integrates the latest in fabrication technology to construct robust ductwork that simplifies installation processes.
    • Enhanced Production Efficiency: Engineered for high-speed operation, this machine significantly accelerates production timelines, effectively meeting varied scale demands while optimizing resource usage.
    • Application Versatility: Tailored to produce a wide range of duct specifications and types, making it suitable for using in sectors like agriculture, industry, and construction. It’s an ideal choice for businesses aiming to diversify their production capabilities.
    • Easy to Operate: Designed to be user-friendly, this duct forming machine allows operators to manage production with minimal training, reducing downtime and maintenance requirements.
    Parameter:
    Model SBLR-800F
    Diameter range ⌀100-800mm
    Thickness of canvas 0.3-0.6mm
    Width of canvas 60-130mm
    Thickness of steel strip 11mm
    Cotton thread specifications 3 strands (4 yarns included for each), 3mm in diameter
    Motor power 1.5kW
    Weight 800kg
    Dimensions 2500×500×1000mm (forming unit)
    3500×500×1000mm (discharge unit)
