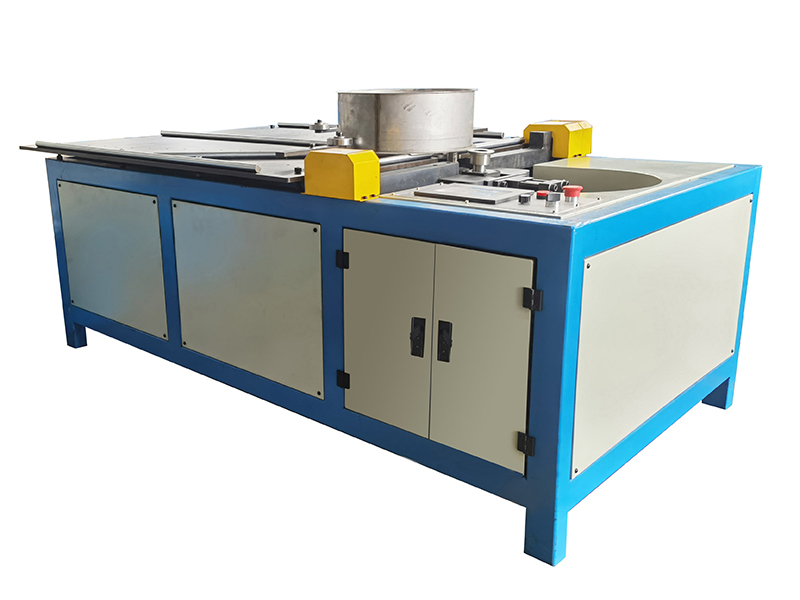

Round Tube Flanging Machine

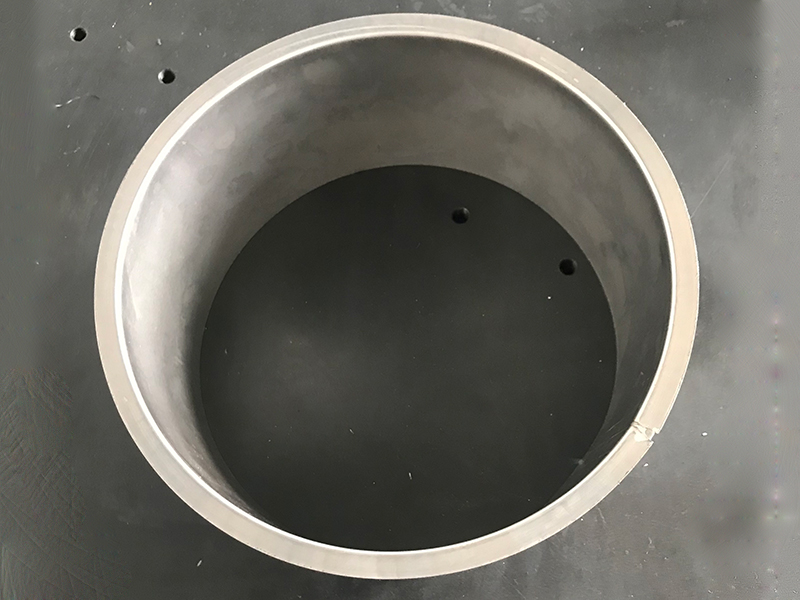

With a maximum flanging width of 13 mm, the round tube flanging machine is compact in structure, easy to operate and low in energy consumption.
Parameters| Model | SBSF-1525 | |
| Power(kw) | 1.5kw | |
| Material thickness | 0.5-3mm black steel | 0.4-2.5mm stainless steel |
| Processing diameter | 100-2000mm | |
| Flanging width | 7mm, 10mm, 13mm | |
| Max. load | 800kg | |
| Dimension(mm) | 2050*1180*820mm | |
| Weight(kg) | 620kg | |
