Aluminum Flexible Duct Machine

Aluminum Flexible Duct Machine
  • Aluminum Flexible Duct Machine
  • Aluminum Flexible Duct Machine

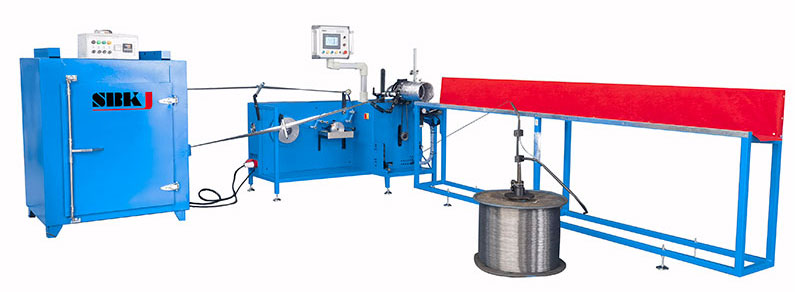

  • Developed independently by SBKJ, this innovative equipment is designed for manufacturing flexible aluminum ducts. The process involves using adhesives, aluminum foil, and steel wire, with the option to include materials such as non-woven fabric and PVC for enhanced duct properties.

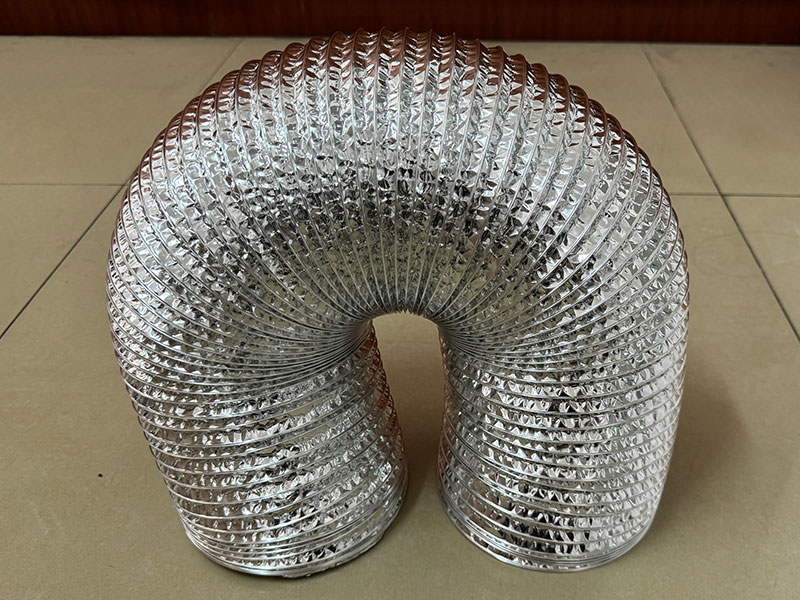

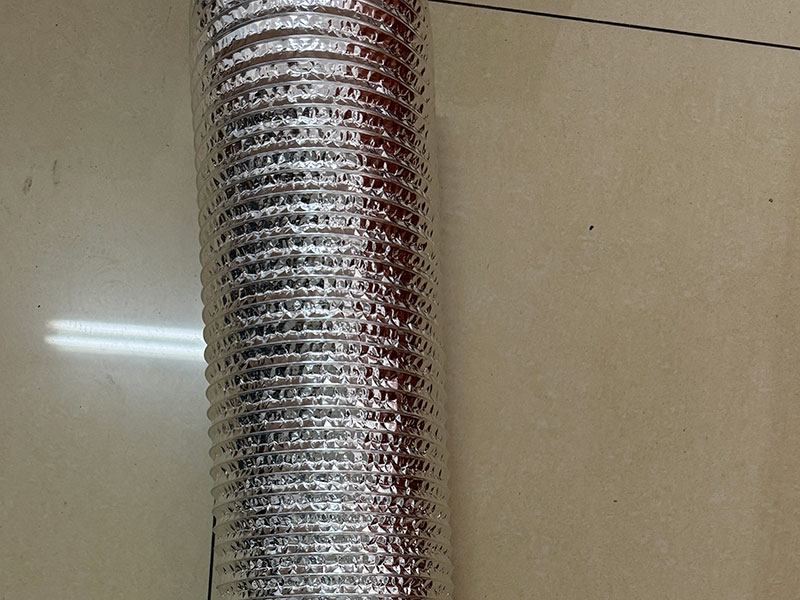

    Engineered to support the demands of modern buildings, these flexible ducts serve as important components in central air conditioning systems within high-rise structures and are equally effective in air purification setups and kitchen exhaust mechanisms. The production process efficiently stretches and spirals the aluminum, creating ducts that combine flexibility with durability for optimal airflow management.

    Parameter
    Diameter 80-600mm
    Material Aluminum foil
    Thickness 0.02-0.08mm
    Width 30-60mm
    Feeding speed 70m/min
    Cutting system Automatic cutting
    Power Forming machine:1.5kW
    Oven:7.5kW
    Run-out table:1.5kW
    Dimensions Oven:1150x1050x1680mm
    Main machine:1860x950x1000mm
    Run-out table:2200x800x125mm
    Wire decoiler:670x680mm
    Weight 980kg
    Voltage 380V/3 phase/50Hz
    Tags
    flexible duct machine duct fabrication equipment aluminum duct making industrial duct systems
