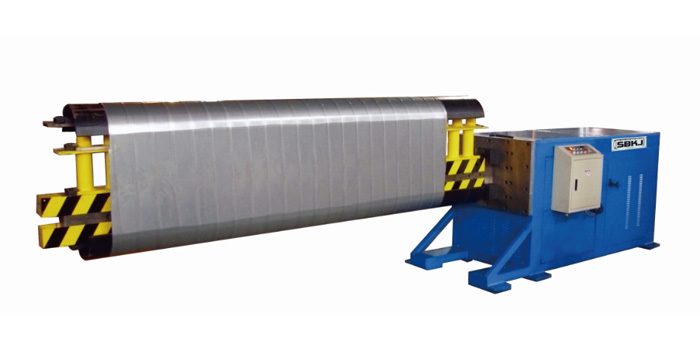

Oval Duct Forming Machine SBHT-3100

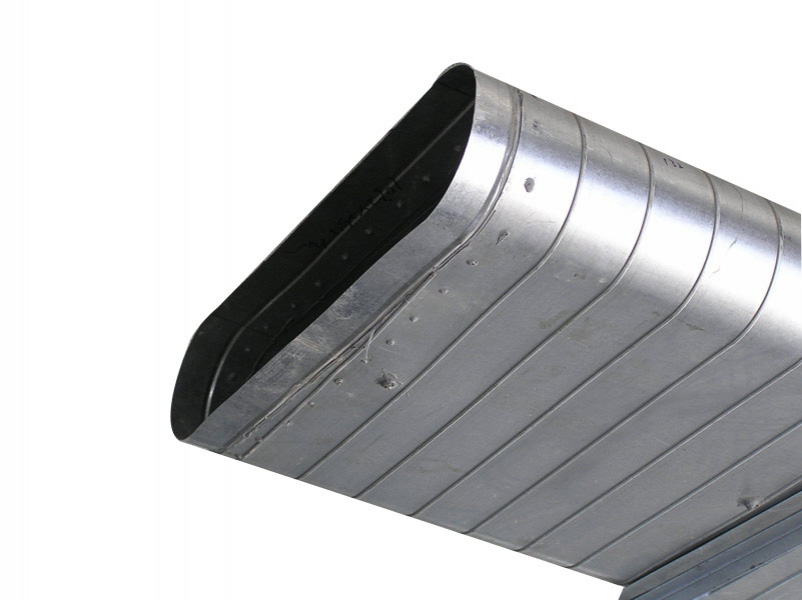

The oval duct forming machine is designed to stretch spiral ducts into an oval shape using a custom-made mold. Our machine is equipped with a hydraulic press to ensure there is enough force for tube formation.

Ovalizer SBHT-3100
  • Ovalizer SBHT-3100
  • Ovalizer SBHT-3100
  • Features:

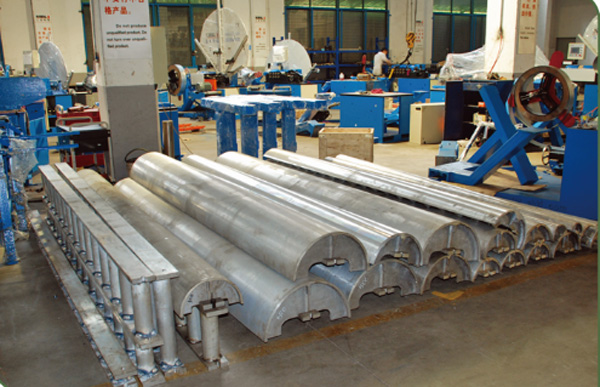

    • Aluminum die to avoid jam.
    • Tray: Aluminum cast made, much lighter.
    Parameter:
    Thickness Range 0.4-1.2mm
    Maximum Duct Length 3100mm
    Minimum Diameter 330mm
    Die Specification(Mm) Φ150、Φ200、Φ250、Φ300、Φ350、Φ400、Φ450、Φ500
    Tray Specification 50、100、200、300、400、500、600mm
    Power 18.5KW
    Weight 2720kg
    Dimension 5630mm×1250mm×1130mm
