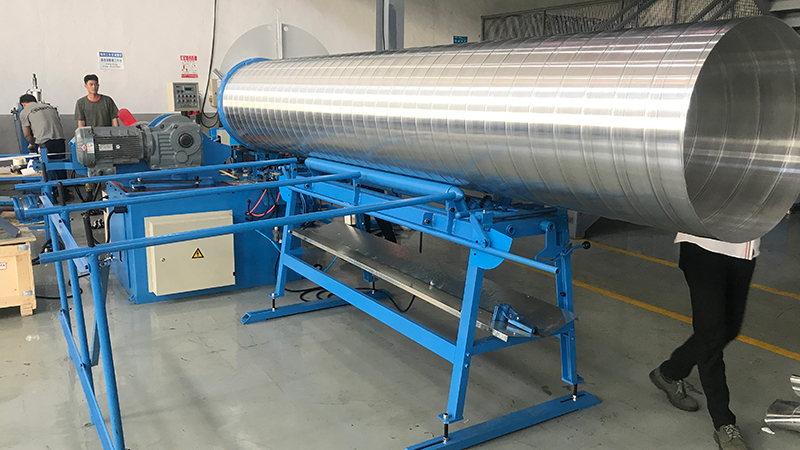

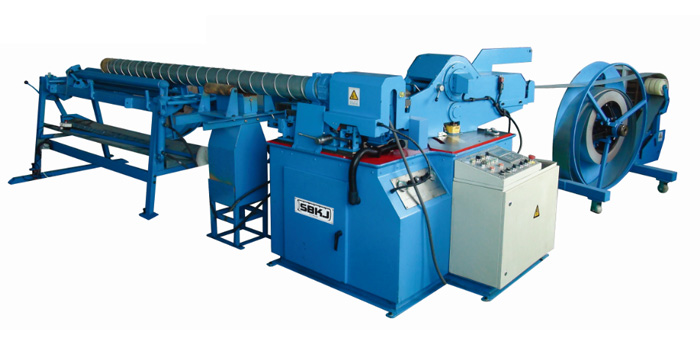

Spiral Tubeformer SBTF-2020, Spiral Duct Forming Machine
The 2020 spiral duct forming machine is designed to work with thicker materials to make ducts with a larger diameter and do so at higher production speeds with a higher precision.
The production diameter ranges between 80 to 2500mm, and as the spiral tube former is equipped with a plasma cutter, it is able to cut through material with a thickness of 2mm or higher. This equipment can also be programmed to cut the exact length for precision trimming to increase the production efficiency.

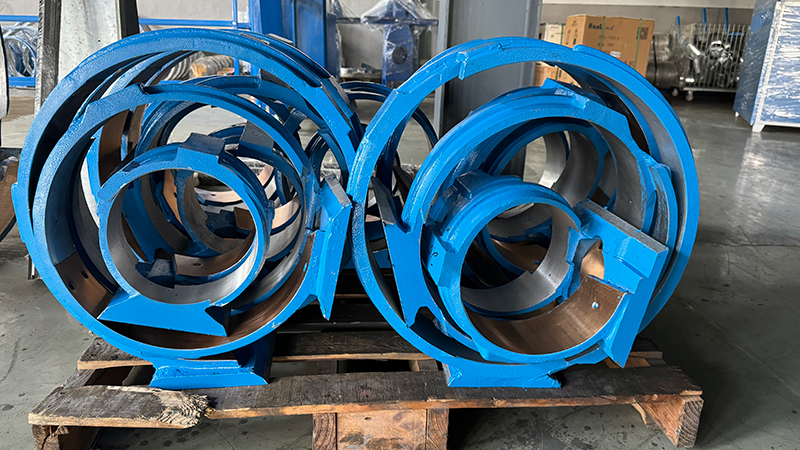

- Changeable forming compartment for materials with different thickness.
- Aluminum forming heads are lighter and more precise compared to iron ones.
- Duct corrugated to strengthen duct.
- Maximum feeding speeds up to 68m/min.
| Diameter Range | Φ80-Φ2500mm |
| Thickness Of Strip | Galvanized Steel Sheet 0.4-2.0mm；Stainless Steel 0.4-1.2mm；Aluminium 0.4-2.0mm |
| Width Of Strip | 137mm 0.4-1.0mm |
| 140mm 1.1-1.3mm | |
| 150mm 1.4-2.0mm | |
| Motor Power | 22kw |
| Weight | 3200kg |
| dimension | 2100mm×1800mm×1500mm(Main machine) 2000mm×1100mm×1300mm(Decoiler) 2450mm×1200mm×1200mm(run-out table) |
| Cutting | plasma cut and flying slitter |
