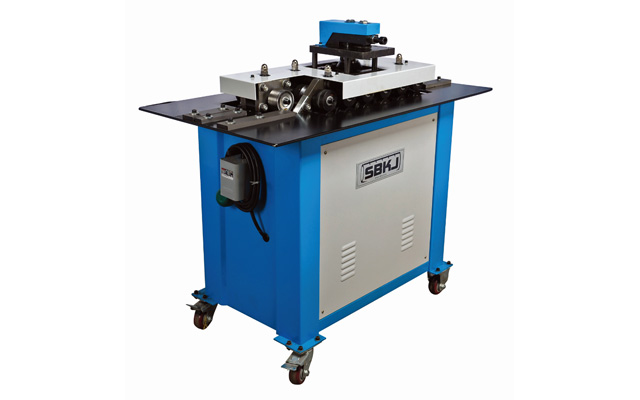

Lock Former,Pittsburgh Machine

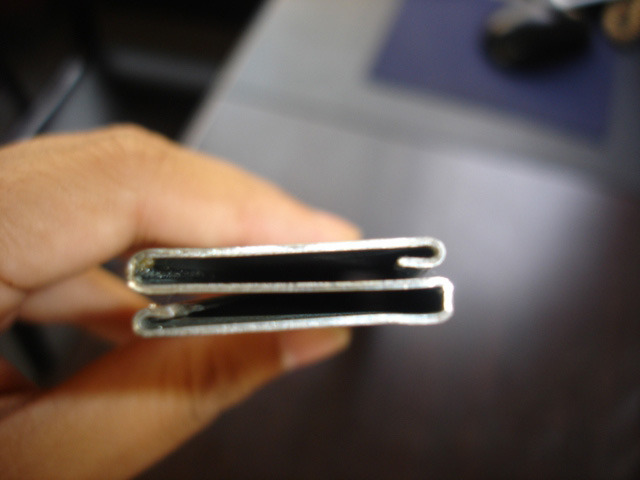

Ours lockformer satisfies most locking, binding, and angle joining needs. The maximum workable thickness for galvanized sheets is 1.5mm. can satisfy any locking, binding, angle joining needs. The maximum workable thickness for galvanized sheet is 1.5mm.

Type	SBLC-12/15	SBLC-12C/15C	SBLC-12DR/15DR	SBLC-12C/15C	SB-R12/15
Thickness	1.2/1.5mm	1.2/1.5mm	1.2/1.5mm	1.2/1.5mm	1.0/1.2mm
Forming shape
Power	1.5/2.2kw	1.5/2.2kw	1.5/2.2kw	1.5/2.2kw	1.5/2.2kw
Weight	210/280kg	230/290kw	230/300kg	150/163kg	150/163kg
Dimension	1050×570×770mm 1150×610×800mm	1050×570×920mm 1150×610×980mm	1050×570×920mm 1150×610×980mm	840×440×780mm 1040×440×780mm	840×440×780mm 1040×440×780mm
