Roll Bending Machine
(for Flat Oval Duct and Duct Fittings)

Roll Bending Machine
  • Roll Bending Machine
  • Roll Bending Machine

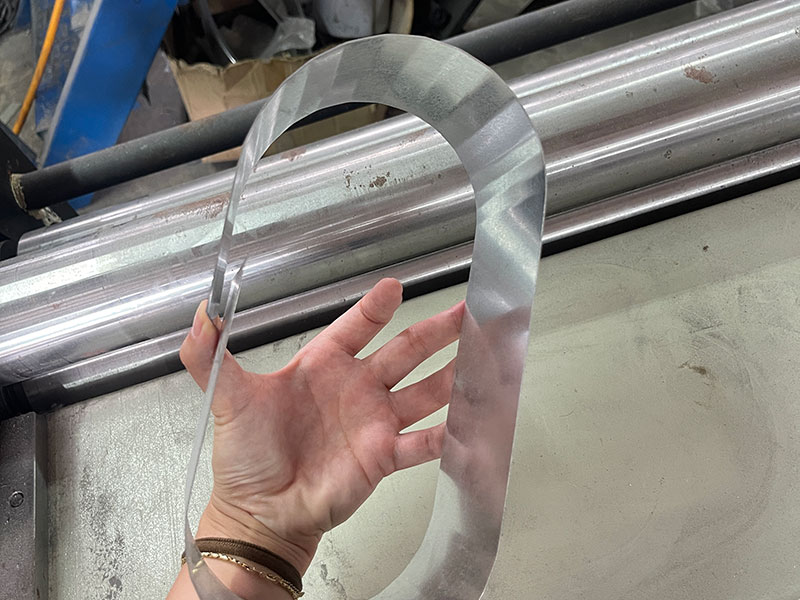

  • The roll bending machine is tailored for creating flat oval ducts and fittings such as oval elbows, oval to round adapters, and oval stack heads, essential for constructing comprehensive flat oval duct systems. Equipped with a programmable logic controller (PLC) touchscreen, this roll bender efficiently rolls metal sheets into perfect oval forms and offers preset dimensions for standard sizes and the flexibility to manually adjust settings for bespoke projects. Operated via a simple foot pedal, this bender facilitates an automated, smooth production flow, making it ideal for HVAC professionals and manufacturers requiring precise tooling for commercial and industrial ductwork projects. Its robust design and versatile capabilities make it a strategic addition to any ductwork fabrication setup, aimed at businesses looking to streamline operations and expand their range of services.

    Parameter
    Min. diameter 140mm
    Max. roll width 1500mm
    Thickness 0.4-1.2mm
    Power 3kW
    Voltage 380V/3 phase/50Hz
    Weight 580kg
    Dimension 2350x770x1485mm
    Tags
    precision roll bender flat oval duct making machine ductwork fabrication
