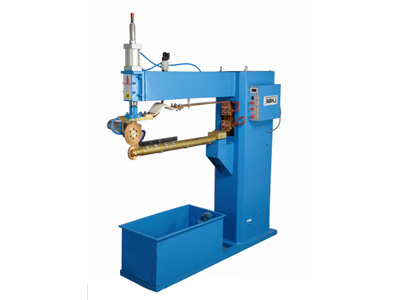

Seam Welder

For customers with no special requirements regarding the welding appearance, we recommend using this seam welder. This seam welding machine produces a current by the collision of the anode and cathode for welding sheet metal. The welding arc is specifically modified for special characteristics found in galvanized sheet metal to create a firmer stitch on the galvanized sheet metal. It carries out both pulse and continuous weld, with an adjustable welding speed on the control panel.

Parameter:
Item Type SBFN-35 SBFN-55 SBFN-75 SBFN-100
Thickness 0.4-1.0 mm 0.4-1.2 mm 0.4-1.5mm 0.4-2.0mm
Max Input Capacity 45KVA 55KVA 75KVA 110KVA
Max,Short Circuit Current 6200A 11000A 16000A 26000A
Max,Pressure Of Electrode 400KGF 600KGF 1000KGF 1000KGF
The Flow Of Cooling Water 6L/min 6L/min 8L/min 8L/min
Arm Lenghth 600mm 600mm 600mm 600mm
Electrode Journey 80mm 80mm 80mm 80mm
Speed Of Welding 0.5-3m/min 0.5-3m/min 0.5-3m/min 0.5-3m/min
weight 328Kg 378Kg 428Kg 478Kg
Dimension 1800×610×1930mm 1800×610×1930mm 1800×610×1930mm 1800×610×1930mm
