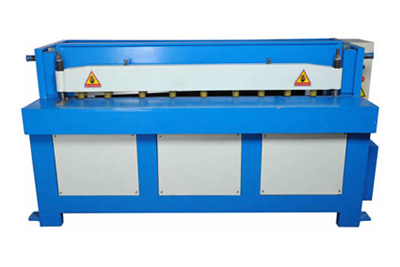

Sheet Metal Shearing Machine

Sheet Metal Shearing Machine

Sheet metal shearing machine assist in the sheet metal bending process. Every structure is welded, simple, and easy to operate with a streamlined appearance. It features a wide applicability for metallurgy, light industrial applications, and machinery sheet metal processing. The bald is made of Cr9si material, and cuts material with a thickness of 2 to 4 mm.

Parameter:
Type SBQ11-2×1300 SBQ11-3×1300 SBQ11-3×1500 SBQ11-4×2000
Thickness 2 mm 3 mm 3 mm 4 mm
Width 1300 mm 1300 mm 1500 mm 2000 mm
Cutting Angle 2°25′ 2°25′ 2°25′ 1°30′
Stoke Time 20 20 20 20
Area 350 mm 350 mm 350 mm 500 mm
Power 3 kw 3 kw 3 kw 5.5 kw
Weight 794 kg 1150 kg 1800 kg 2300 kg
Dimension 1880×960×1120 mm 1990×1010×1120 mm 2515×1500×1300 mm 2650×880×1140 mm
