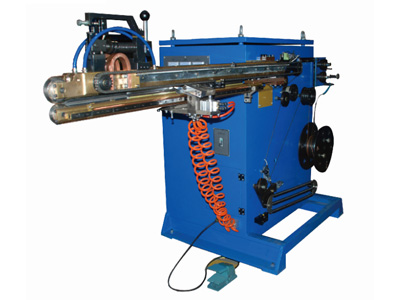

Duct welding machines are great for a nice, smooth finish to welded materials. This machine welds using conducted copper wire to form a smooth, need weld without any damage to the galvanized surface. The welding machine uses high quality welding rollers to increase the service life and power efficiency, as well as ensure a fast, effective welding process. The duct welding machine carries out pulse and continuous welding, with an adjustable welding speed using the control panel.
Parameter:Diameter | φ100-φ1000mm |
Range Length | 50-1000mm |
Overlap | 6mm |
Thickness | 0.4-1.2mm |
Speed | 2m/min |
Copper Diameter | φ2.0-2.2mm |
Max Power | 40KW |
Weight | 850kg+Chiller |
Dimension | 2300mm×800mm×1300mm |
