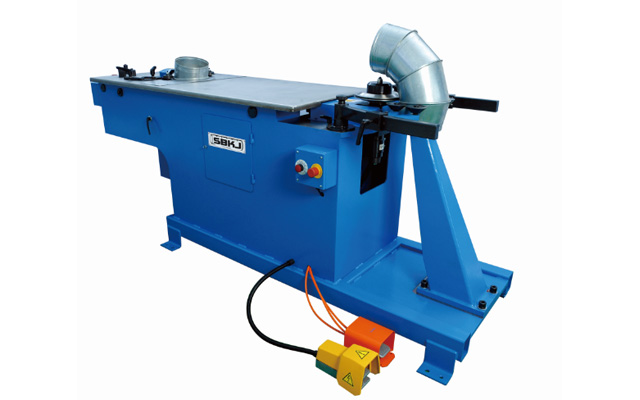

Elbow Making Machine SBEM-1250

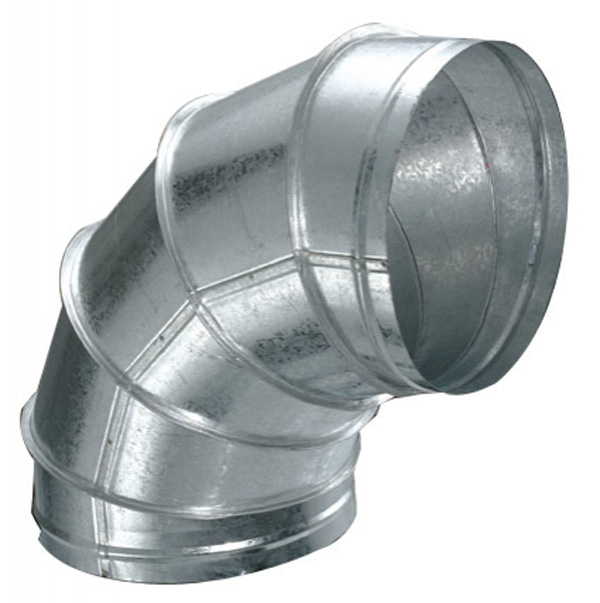

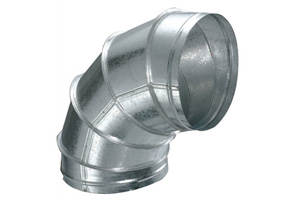

The machine produces elbow parts for round ducts and are able to seam and lock flanges to create said elbow parts.

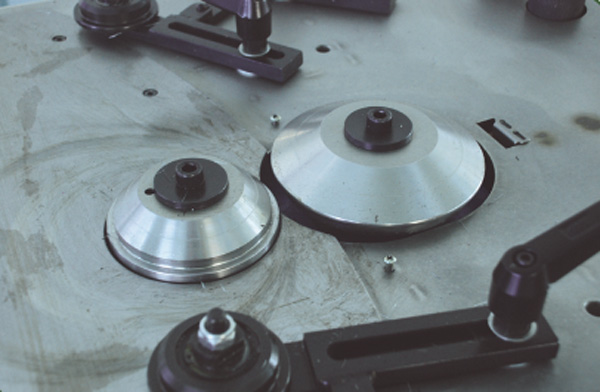

Advantages:- The workstations use a wear resistant steel die with an extended service life and exceptional wear resistance.
- The hydraulic system comes from Brevini and guarantees product precision and machine stability.

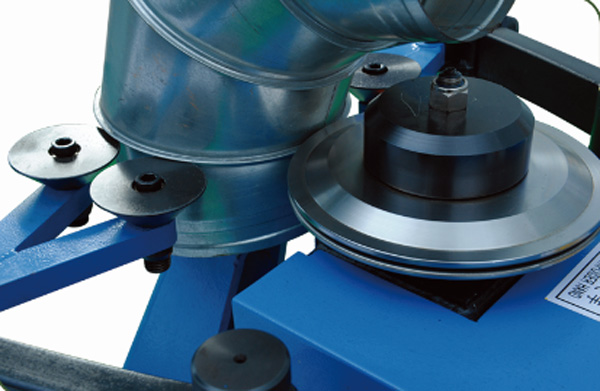

- Two workstations, one flanging station and seaming station. Both stations can operate simultaneously to save time.
| Diameter Range | φ125mm-φ1250mm |
| Thickness | Steel 0.4-1.2mm |
| Galvanized Steel Sheet 0.4-1.2mm | |
| Stainless steel 0.4-0.8mm | |
| Aluminium 0.4-1.2mm | |
| Maximum Forming Feed | 120m/min |
| Hydraulic Oil | 55L |
| Consumption Of Com-Pressed Air | 75L/hour 6bar |
| Power | 4Kw+120W（cooling fan） |
| Voltage | 380V/50HZ/3PH |
| Weight | 750Kg |
| Dimension | 2650mm×800mm×1000mm |
