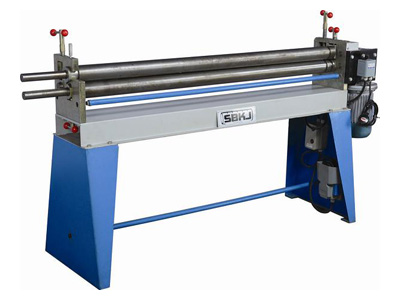

Power Slip Rolls

Electrical-driven Bending Machine

The power slip roll machine turns flat material into cylindrical rolls. The unique 3 roller electric power slip rolls feature different diameters for different arc degrees. Slip rolls produce wind ducts with a smooth finished surface, making them suitable for use in ventilation systems in the textile industry.

We have three power slip roll models for customers to choose from according to different material types.

Parameter:

Model	SBW11G-2×1020	SBW11G-1.5×1270	SBW11G-1.2×1530
Maximum Thickness	2mm	1.5 Mm	1.2 Mm
Maximum Width	1000mm	1300 Mm	1530 Mm
Yield Limit	245mm	245mm	245mm
Minimum Diameter	100mm	100mm	100mm
Top Roller Diameter	73mm	73mm	73mm
Bottom Roller Diameter	73mm	73mm	73mm
Motor Power	1.5KW	1.5KW	1.5KW
Weight	220Kg	240Kg	280Kg
Dimension	1540×550×1110mm	1780×550×1110mm	1900×550×1110mm
