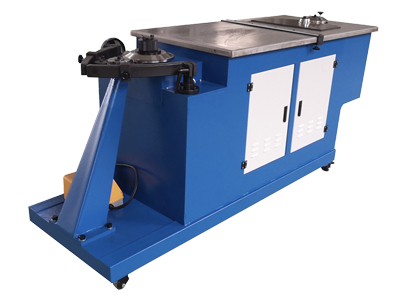

Elbow Making Machine SBWT-1000
This elbow making machine is primarily for making round duct elbows as it locks both female and male components together to form a tube elbow. It meets basic needs for production of elbow parts and features a geared motor. This means the speed is non-variable and has a little lower precision compared to a hydraulic elbow making machine.
Parameter:| Type | SBWT-1000 | SBWT-1500 | SBWT-1000A | SBWT-1500A | SBWT-1000D | SBWT-1500D |
| Max Diameter Of Elbow | 1.2 mm | 1.5mm | 0.4-1.2mm (galvanized steel ) 0.4-1.0mm (stainless steel) | 0.4-1.8mm (galvanized steel ) 0.4-1.2mm (stainless steel) | 0.4-1.2mm (galvanized steel ) 0.4-1.0mm (stainless steel) | 0.4-1.8mm (galvanized steel ) 0.4-1.2mm (stainless steel) |
| Diameter Range | φ120-1150mm | Φ120-1500mm | φ120-1000mm | Φ120-1500mm | φ120-1000mm | φ120-1500mm |
| Forming Speed | 35r/min | 35r/min | 75r/min | 75r/min | 75r/min | 75r/min |
| Motor Power | 1.5KW×2 | 2.2KW*2 | 1.5kw*2+2.2KW×1 | 2.2KW*2+4kw*1 | 1.5kw*2+2.2KW*2 | 2.2KW*2+4KW*2 |
| Weight | 600Kg | 700Kg | 600Kg | 660Kg | 600kg | 660kg |
| Dimension | 2080×720×895mm | 2450×700×895mm | 2100×700×890mm | 2450×700×895mm | 2080×700×895mm | 2450×700×895mm |
